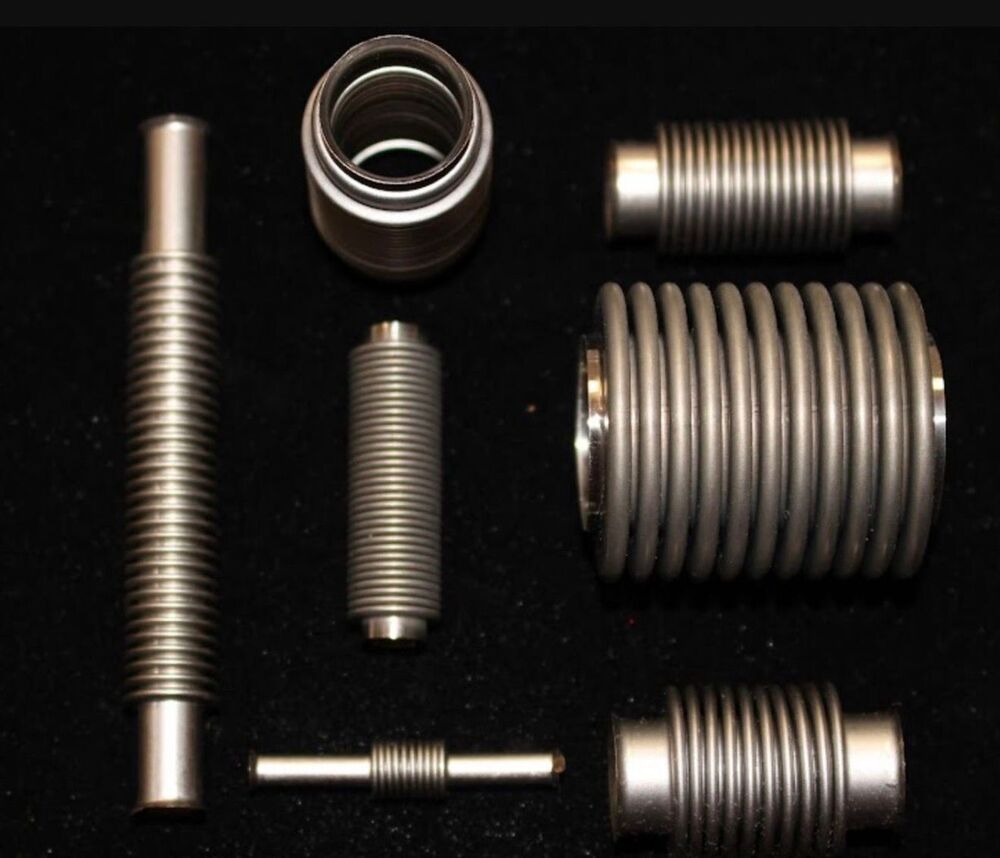

Metallic Bellows

Get a Price/Quote

MOQ : 1 Number

Metallic Bellows Specification

Head Code
Round

Media
Gas, Liquid, Steam, Oil, Chemical

Surface Treatment
Polished, Anti-corrosion Coating

Max. Temperature
Up to 800C

Flange
ANSI, DIN, JIS, Customized

Material
Stainless Steel, Inconel, Hastelloy, Mild Steel

Technique
Hydraulic Forming, Mechanical Forming, Welding

Type
Axial, Lateral, Universal, Angular Bellows

Connecting Type
Flanged, Welded, Threaded

Shape
Cylindrical

Working Pressure
Up to 40 bar

Size Range
25 mm to 1200 mm (inner diameter)

Life Cycles
More than 10,000 cycles

End Connection
Flanged, Buttweld, Screwed, Customized

Corrugation Thickness
0.15 mm to 3 mm

Leakage Rate
Helium Leak Rate: 1x106 mbar l/s

Length
As per customer requirement

Vibration Resistance
High

Design Standard
EJMA, ASME

Application
Piping systems, Exhaust Systems, Vacuum Technology, Expansion Joints

Metallic Bellows Trade Information

Minimum Order Quantity
1 Number

Supply Ability
500 Per Month

Delivery Time
7 Days

About Metallic Bellows

Discover phenomenal reliability with our gilt-edged Metallic Bellows, expertly crafted for critical environments. Get dazzling performance with a discount on orders across the in-demand size range of 25 mm to 1200 mm (inner diameter), and corrugation thicknesses from 0.15 mm to 3 mm. Designed under EJMA and ASME standards, each bellow features flanged, welded, or threaded ends to suit your needs. Enjoy high vibration resistance, over 10,000 life cycles, and a helium leak rate as low as 1x106 mbar l/s. Ideal for piping, exhaust, vacuum, and expansion joints. Now available from India's trusted export manufacturer and supplier.

Versatile Types & Robust Applications

Metallic Bellows are available in axial, lateral, universal, and angular types, offering exceptional adaptability. Their cylindrical shape and high vibration resistance make them essential for diverse uses, including piping systems, vacuum technology, and expansion joints. With customizable lengths, anti-corrosion surface treatment, and material choices such as stainless steel, Inconel, or Hastelloy, these bellows offer extra features like resistance to high temperatures and aggressive chemicals for demanding applications.

Export Markets, Sample Policy & Efficient Dispatch

Our metallic bellows are dispatched to major export markets across Asia, Europe, and the Middle East. We gladly offer sample policies to enable evaluation before large-scale orders. With an estimated supply ability tailor-fit to your project and prompt shipment processes, you can rely on us for timely deliveries. Customization and flexible packaging options make us a preferred exporter, manufacturer, and supplier from India, ensuring you receive premium products every time.

FAQ's of Metallic Bellows:

Q: How can I select the right metallic bellow type for my application?

A: The selection depends on your specific application, operating pressure, temperature, media, and required movement. Our range includes axial, lateral, universal, and angular bellows, each suited for particular movements and environmental demands. We can help you determine the most suitable type.

Q: What materials are available for these metallic bellows?

A: Our bellows are manufactured from high-grade materials like stainless steel, Inconel, Hastelloy, and mild steel, allowing for optimal corrosion resistance and compatibility with various media including gas, liquid, steam, oil, and chemicals.

Q: When will my order be dispatched after confirming specifications?

A: Orders are typically dispatched promptly depending on customization requirements and volume. We will provide you with an estimated dispatch date once your order specifications are finalized.

Q: Where are the main markets you export metallic bellows to?

A: We export primarily to clients across Asia, Europe, and the Middle East, but can also serve customers in other international locations upon request.

Q: What is the process for requesting samples before a bulk order?

A: You can request samples as per our sample policy to evaluate quality and compatibility. Contact us with your specifications, and we'll offer a sample and provide detailed information for your assessment.

Q: What are the main benefits of your metallic bellows in industrial applications?

A: Our metallic bellows offer high durability, excellent leakage resistance, support for extreme temperatures, and customization to suit specific client needs, ensuring reliable and cost-efficient operation in various industrial systems.
